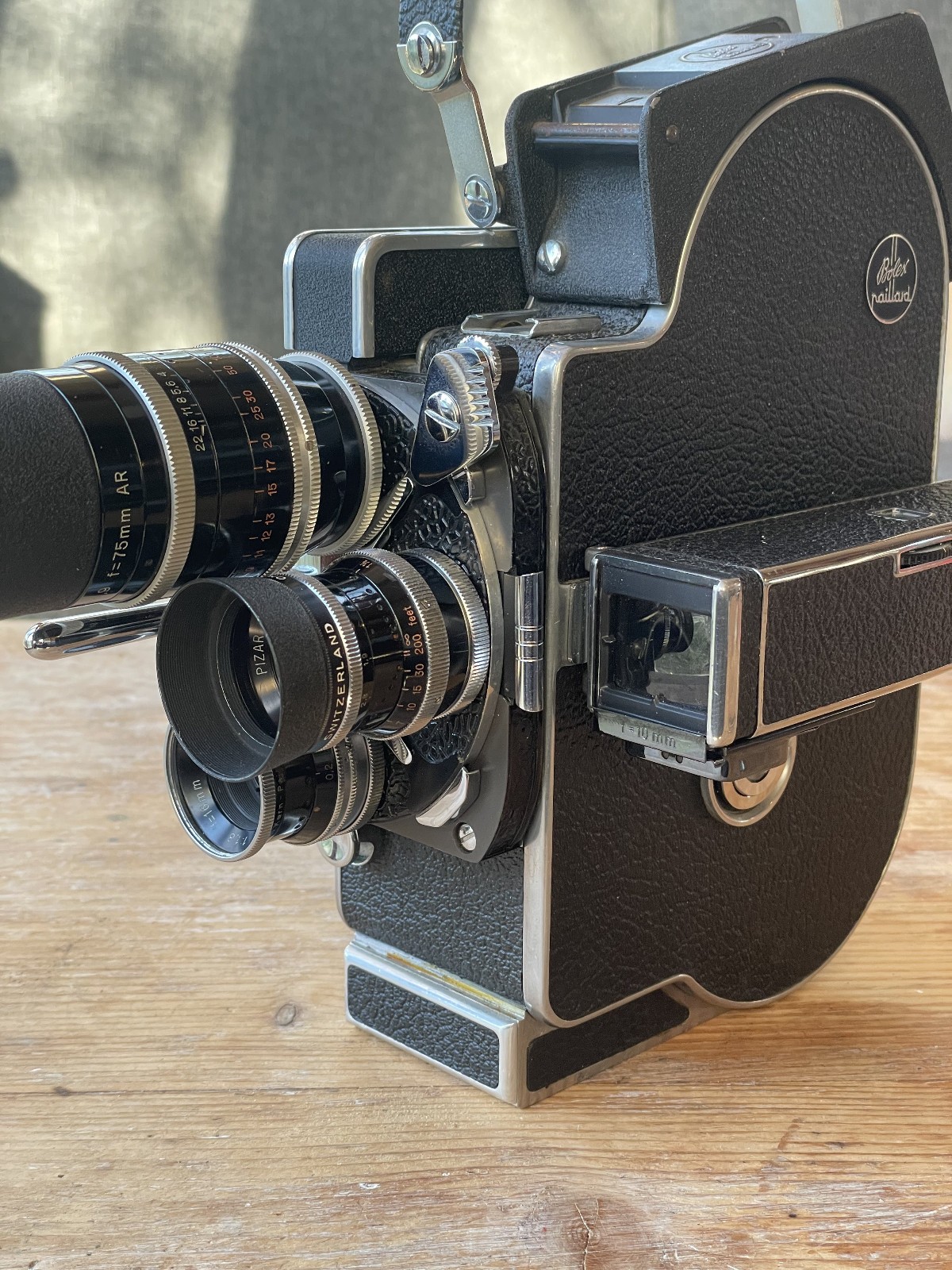

Paillard Bolex H16 Reflex REX5 16mm Cine Film Camera & 16/26/75mm Lenses
GBP 2,995.00
Condition: Unknown
Category:
Electronics
Fast Shipping
Estimated delivery in 3-5 daysEasy Returns
30-day returns, buyer pays return shippingPaillard Bolex H16 Reflex REX5 16mm Cine Film Camera & 16/26/75mm Lenses.
I bought this camera fro a project over 20 years ago, and shot quite a few rolls of both moving images and stop motion animation with it. I have not used it for approx 15 years but it has been stored carefully.
Tested and fully working, in great working condition. Comes with:
Bolex H16 REX 5 - Serial number: 233028

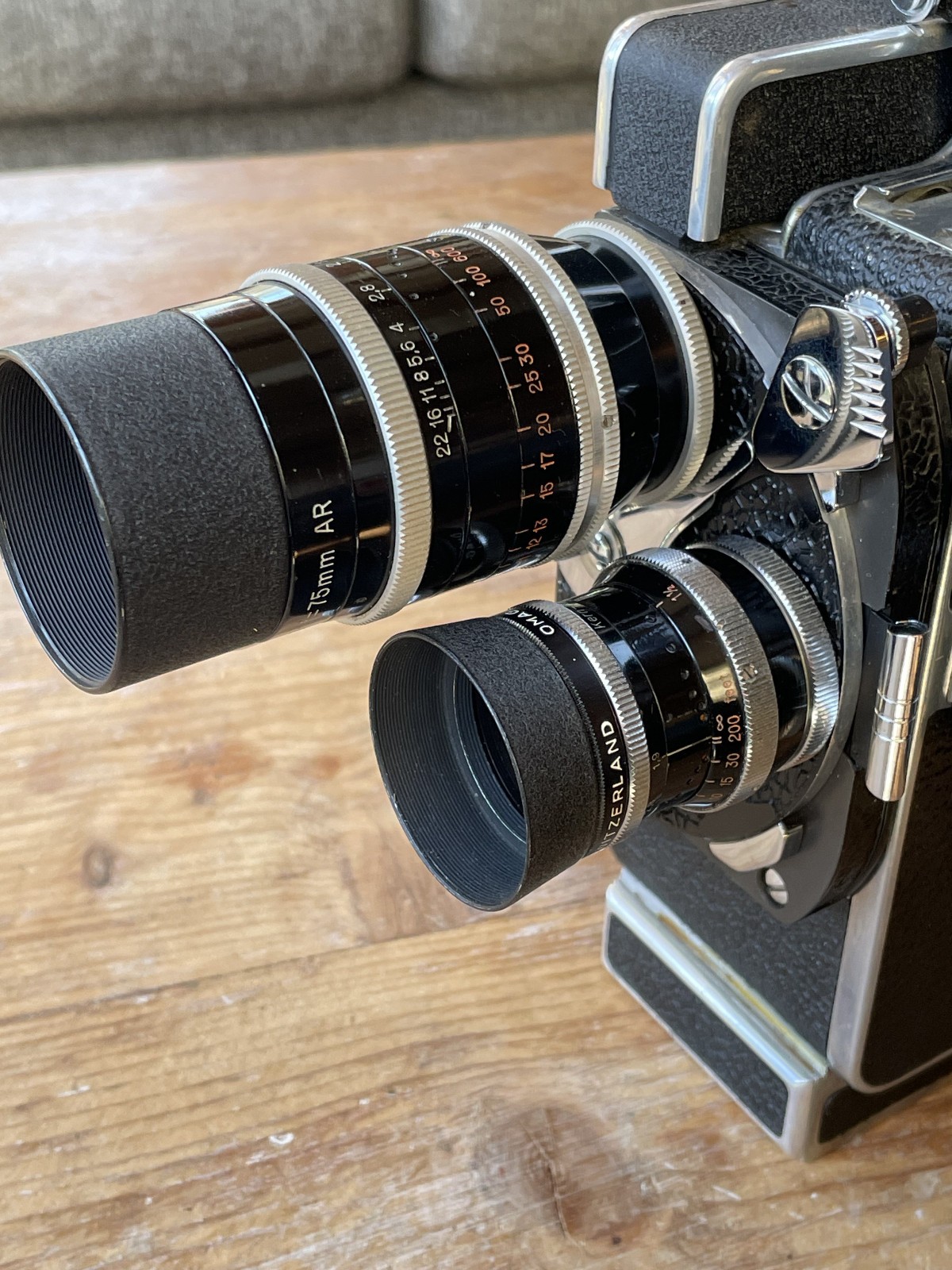

Kern Pizar 26mm f/1.6 AR Lens with Lens Hood and filter.
Kern Switar 16mm f/1.8 RX Lens with front and rear caps
Kern Switar 75mm f/1.9 RX Lens with Lens Hood, and front and rear caps
Wide and Std Lenses - in good working order, clean of fungus/mould. Some dust visible, 75mm lens focus has variable resistance to the feel of the focus ring, back focus needs slight adjustment. it does work ok but could benefit from a CLA
Motor - runs well at all film speeds, full wind gives approx 28 seconds on 24fps.
Body - in very good condition
Octometer viewfinder - in good condition with extra 10mm flip up lens present,
Other features - all tested and working well.
Includes 3 film spools and 2 body caps, 1 turret locking body cap.
Body Tested without film and observed to be working well.
OVERALL DIMENSIONS: 9" x 6" x 3"
WEIGHT: 6 lbs. 12 oz.; Approximately 8 1/2 lbs with magazine.
OUTER CASE: Highly polished duraluminium body, covered in genuine Morocco leather. Metal parts are chrome-plated.
FILM CAPACITY: 100ft (30m) daylight loading spools of 16mm film. Saddle accepts 400ft (120m) magazine.
THREADING: Automatic threading and loop forming. The end of the film is simply placed in a channel leading to the feed sprocket. The release is pressed and the film is then automatically threaded throughout the entire mechanism.
MOTOR: Constant speed, spring motor mechanism; governor controlled. Large winding handle folds downward and attaches to camera when not in use. Spring cannot be over-wound. 8:1 and 1:1 external drive shaft permits the attachment of an electric motor.
TURRET: Rotating turret with folding lever; Accommodates three interchangeable RX type C mount lenses; Built-in turret lock lever.
VIEWFINDER: 10x magnification; Reflex viewing with semi-reflecting prism system; Groundglass focusing; Adjustable to eyesight. The camera comes equipped with an Octometer viewfinder.
FILTER SLOT: Built-in slot holds a gelatin filter behind the taking lens and in front of the shutter.
VARIABLE SPEED: 12, 16, 18, 24, 32, 48 and 64 frames per second
Bolex 400ft MagazineRELEASE BUTTON: provides for the making of continuous exposures by a finger-tip release on the front of the camera. A side release allows for locked, hands-free running or single frame exposures.
VARIABLE SHUTTER: 133 degree variable shutter; Operated manually to decrease exposure time, or with accessory Rexofader to accomplish fade-ins and fade-outs.
FOOTAGE COUNTER: adds and subtracts accurately in forward or reverse motion and automatically returns to zero when film is reloaded into the camera.
AUDIBLE FOOTAGE INDICATOR: A distinct click announces the passing of each 10 inches of film through the gate. This mechanism may be disengaged, if desired, by simply moving a lever.
FRAME COUNTER: Twin dial counts frames individually and in total; Adds frames in forward motion and subtracts when film is wound backwards. Dial may be reset manually at any time.
SINGLE FRAME: Time lapse and animation is possible by using the side release button or an accessory cable release and adapter; I-T lever allows for timed or instantaneous single exposures.
MANUAL REWIND: Clutch disengages spring motor and permits forward movement and backwind without running down the spring; allows for dissolves and superimposition.
FLAT BASE: Contains three tripod sockets: Two 3/8" thread and one 1/4" thread. Front of the base is removable for easy mounting of the Bolex Matte Box
Collection preferred but will post special delivery next day fully insured.
| Brand | Paillard Bolex |
|---|---|
| Film Format | 16mm |
| Type | Reflex |
| Model | Paillard Bolex H16 Reflex REX5 |
| Manufacturer Warranty | None |
|---|---|
| Country Of Origin | Switzerland |
| Colour | Black |
